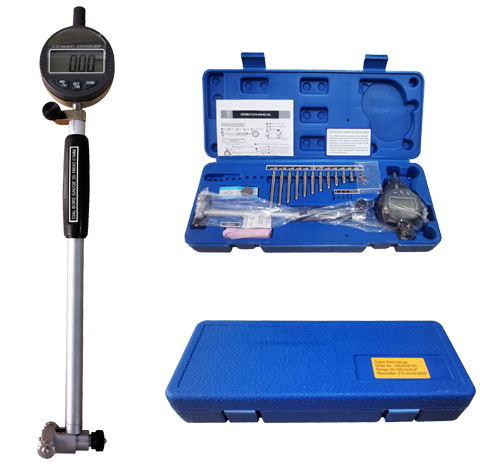

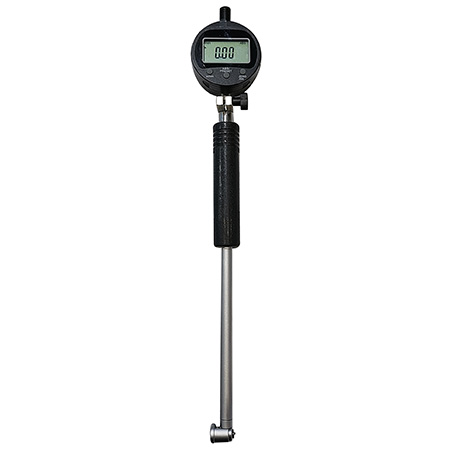

KM-DDB160
Feature：
1. Digital display for easy-reading.
2. Inserting interchangeable anvils.
3. With 0-12.7mm/0-0.5″ digital indicator.
4. inch/mm: inch/metric conversion.
5. ZERO/ON: zero setting at any position and power on off.
6. ABS/PRESET: Absolute/Relative Conversion and Preset Value.
7. Measuring Depth can be customized to meet different application.
8. Supplied in fitted case.
Specification:
|
Order No. |
Range |
Depth |
Resolution |
Accessories |
||
|
Anvils |
Washers |
Sub-anvils |
||||
|
KM-DDB10 |
6-10mm/0.24-0.4″ |
40mm |
0.01mm/0.0005″ |
9 |
|
|
|
KM-DDB18 |
10-18mm/0.4-0.7″ |
100mm |
0.01mm/0.0005″ |
9 |
1 |
|
|
KM-DDB35 |
18-35mm/0.7-1.5″ |
150mm |
0.01mm/0.0005″ |
9/10 |
2 |
|
|
KM-DDB50 |
35-50mm/1.4-2.4″ |
150mm |
0.01mm/0.0005″ |
4/6 |
4/3 |
|
|
KM-DDB160 |
50-160mm/2-6″ |
150mm |
0.01mm/0.0005″ |
12/11 |
4/3 |
1 |
|
KM-DDB250 |
160-250mm/6-10″ |
250mm |
0.01mm/0.0005″ |
5/6 |
5/6 |
1 |
|
KM-DDB450 |
250-450mm/10-16″ |
250mm |
0.01mm/0.0005″ |
5/6 |
5/6 |
2 |
