KM-2144-400

Feature:

1. Protection level: IP65(oil, water and dust proof).

2. LCD display for fast reading.

3. Wide measuring range with adjustable anvil.

4. High accuracy standard collars enable that reading does not have to be reset when changing collars.

5. Standard collars: within 1000mm/40”:25mm/1”, 50mm/2”.

6. Pipe combined frame for light weight and high rigidity.

7. OFF/ON, SET, ABS/INC, UNIT (in/mm conversion) function keys.

8. Carbide measuring faces provide accuracy and wear resistance.

9. Ratchet thimble for precise application of force.

10. SPC data output.

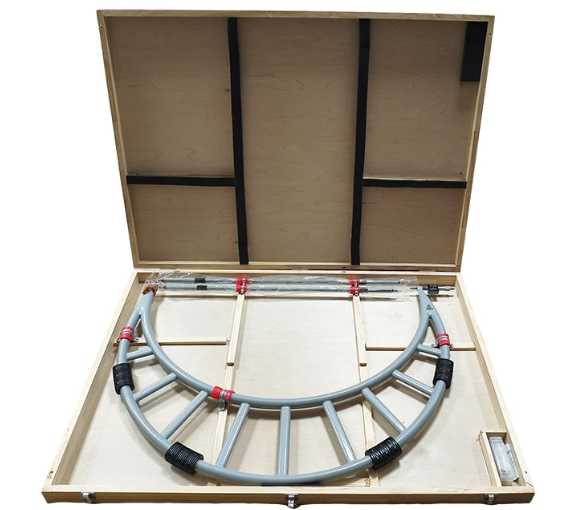

11. Supplied in safe case packing.

Specification:

Order No.	Range	Resolution	Accuracy
KM-2144-400	300-400mm	0.001mm	±0.011mm
KM-2144-500	400-500mm	0.001mm	±0.013mm
KM-2144-600	500-600mm	0.001mm	±0.015mm
KM-2144-700	600-700mm	0.001mm	±0.016mm
KM-2144-800	700-800mm	0.001mm	±0.018mm
KM-2144-900	800-900mm	0.001mm	±0.020mm
KM-2144-1000	900-1000mm	0.001mm	±0.020mm
