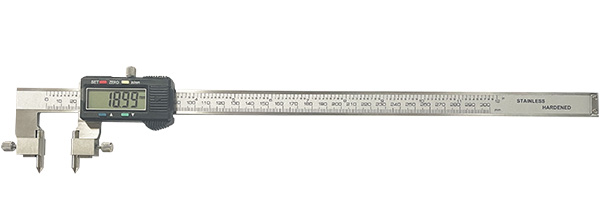

KM-DCLV-300
Feature:
1. Can measure the center distance between two holes.
2. Centerline contacts can be slid up and down to measure the center distance between stepped holes.
3. Hardened stainless steel main scale and measuring jaws.
4. Safe case packing.

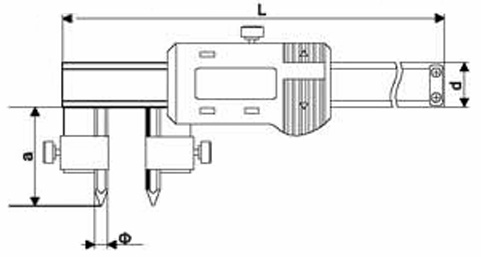

Specification:
|
Order No. |
Range |
Resolution |
Accuracy |
L(mm) |
a(mm) |
d(mm) |
φ(mm) |
|
KM-DCLV-150 |
5~150mm |
0.01mm |
±0.03mm |
236 |
35 |
16 |
5 |
|
KM-DCLV-1501 |
10~150mm |
0.01mm |
±0.03mm |
236 |
40 |
16 |
10 |
|
KM-DCLV-200 |
5~200mm |
0.01mm |
±0.04mm |
285 |
35 |
16 |
5 |
|
KM-DCLV-2001 |
10~200mm |
0.01mm |
±0.04mm |
285 |
40 |
16 |
10 |
|
KM-DCLV-300 |
5~300mm |
0.01mm |
±0.05mm |
385 |
35 |
16 |
5 |
|
KM-DCLV-3001 |
10~300mm |
0.01mm |
±0.05mm |
385 |
40 |
16 |
10 |
|
KM-DCLV-5001 |
10~500mm |
0.01mm |
±0.06mm |
650 |
50 |
24 |
10 |
|
KM-DCLV-5002 |
20~500mm |
0.01mm |
±0.06mm |
650 |
60 |
24 |
20 |
|
KM-DCLV-10001 |
10~1000mm |
0.01mm |
±0.08mm |
1200 |
50 |
31 |
10 |
|
KM-DCLV-10002 |
20~1000mm |
0.01mm |
±0.08mm |
1200 |
60 |
31 |
20 |
