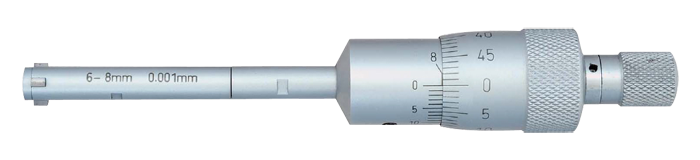

KM-2317-8
Feature：
1. Graduation: 0.001mm(Metric); 0.0001″(Inch).
2. Measurement can be taken closer to the bottom of the blind bore and can be taken into a deep hole with an extension rod.
3. Ratchet stop.
4. Range 6-12mm/0.275-0.5″ : without carbide-tipped contact points.
5. Supplied in the storage case.
Specification:
Metric:
|
Order No. |
Measuring Range |
Graduation |
Accuracy |
Setting rings |
L1 |
A |
Extension rods |
|
KM-2317-8 |
6-8mm |
0.001mm |
±0.004mm |
Φ6mm |
53.5mm |
0.5mm |
100mm |
|
KM-2317-10 |
8-10mm |
0.001mm |
±0.004mm |
Φ8mm |
53.5mm |
0.5mm |
100mm |
|
KM-2317-12 |
10-12mm |
0.001mm |
±0.004mm |
Φ10mm |
53.5mm |
0.5mm |
100mm |
Inch:
|
Order No. |
Measuring Range |
Graduation |
Accuracy |
Setting rings |
L1 |
A |
Extension rods |
|
KM-2317-0.35 |
0.275-0.35″ |
±0.0001″ |
±0.00016″ |
Φ0.275″ |
2.14″ |
0.02″ |
4″ |
|
KM-2317-0.425 |
0.35-0.425″ |
±0.0001″ |
±0.00016″ |
Φ0.35″ |
2.14″ |
0.02″ |
4″ |
|
KM-2317-0.5 |
0.425-0.5″ |
±0.0001″ |
±0.00016″ |
Φ0.5″ |
2.14″ |
0.02″ |
4″ |
