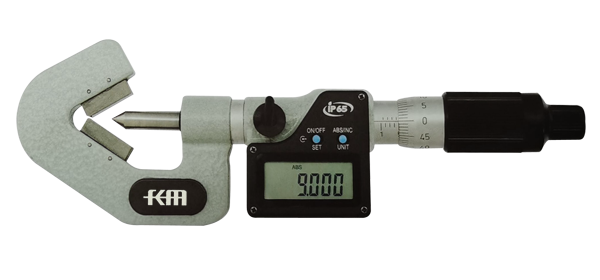

KM-2205-315
产品特征:
1. 分辨率:0.001mm(公制);0.00005″(英制)。
2. 大屏幕液晶显示读数。
3. 棘轮测力。
4. 适用于测量奇数沟槽零件的直径,如:丝锥、铰刀、铣刀等。
5. 硬质合金测量面。
6. IP65防护等级。符合标准:DIN40050/IEC529。
7. 配置保护盒。
规格信息:
货号 |
测量范围 |
精度 |
分辨率 |
沟数 |
KM-2205-315 |
1~15mm |
±0.002mm |
0.001mm |
3 |
KM-2205-320 |
5~20mm |
±0.002mm |
0.001mm |
3 |
KM-2205-335 |
20~35mm |
±0.003mm |
0.001mm |
3 |
KM-2205-350 |
35~50mm |
±0.003mm |
0.001mm |
3 |
KM-2205-365 |
50~65mm |
±0.003mm |
0.001mm |
3 |
KM-2205-380 |
65~80mm |
±0.003mm |
0.001mm |
3 |
KM-2205-395 |
80~95mm |
±0.004mm |
0.001mm |
3 |
KM-2205-325 |
2.3~25mm |
±0.002mm |
0.001mm |
3 |
KM-2205-351 |
25~50mm |
±0.003mm |
0.001mm |
3 |
KM-2205-525 |
5~25mm |
±0.002mm |
0.001mm |
5 |
KM-2205-545 |
25~45mm |
±0.003mm |
0.001mm |
5 |
KM-2205-565 |
45~65mm |
±0.003mm |
0.001mm |
5 |
KM-2205-585 |
65~85mm |
±0.004mm |
0.001mm |
5 |
KM-2205-5105 |
85~105mm |
±0.004mm |
0.001mm |
5 |
KM-2205-725 |
5~25mm |
±0.002mm |
0.001mm |
7 |
KM-2205-745 |
25~45mm |
±0.003mm |
0.001mm |
7 |
KM-2205-765 |
45~65mm |
±0.003mm |
0.001mm |
7 |
KM-2205-785 |
65~85mm |
±0.004mm |
0.001mm |
7 |
英制:
货号 |
测量范围 |
精度 |
分辨率 |
沟数 |
KM-2205-30.6 |
0.04~0.6″ |
±0.00008″ |
0.00005″ |
3 |
KM-2205-30.8 |
0.2~0.8″ |
±0.00008″ |
0.00005″ |
3 |
KM-2205-31.4 |
0.8~1.4″ |
±0.00012″ |
0.00005″ |
3 |
KM-2205-32.0 |
1.4~2.0″ |
±0.00012″ |
0.00005″ |
3 |
KM-2205-32.6 |
2.0~2.6″ |
±0.00012″ |
0.00005″ |
3 |
KM-2205-33.2 |
2.6~3.2″ |
±0.00012″ |
0.00005″ |
3 |
KM-2205-33.8 |
3.2~3.8″ |
±0.00016″ |
0.00005″ |
3 |
KM-2205-31 |
0.09~1″ |
±0.00008″ |
0.00005″ |
3 |
KM-2205-32 |
1~2″ |
±0.00012″ |
0.00005″ |
3 |
KM-2205-51 |
0.2~1.0″ |
±0.00008″ |
0.00005″ |
5 |
KM-2205-51.8 |
1.0~1.8″ |
±0.00012″ |
0.00005″ |
5 |
KM-2205-52.6 |
1.8~2.6″ |
±0.00012″ |
0.00005″ |
5 |
KM-2205-53.4 |
2.6~3.4″ |
±0.00016″ |
0.00005″ |
5 |
KM-2205-54.2 |
3.4~4.2″ |
±0.00016″ |
0.00005″ |
5 |
KM-2205-71 |
0.2~1.0″ |
±0.00008″ |
0.00005″ |
7 |
KM-2205-71.8 |
1.0~1.8″ |
±0.00012″ |
0.00005″ |
7 |
KM-2205-72.6 |
1.8~2.6″ |
±0.00012″ |
0.00005″ |
7 |
KM-2205-73.4 |
2.6~3.4″ |
±0.00016″ |
0.00005″ |
7 |
